Intamsys Funmat HT 3D Printer

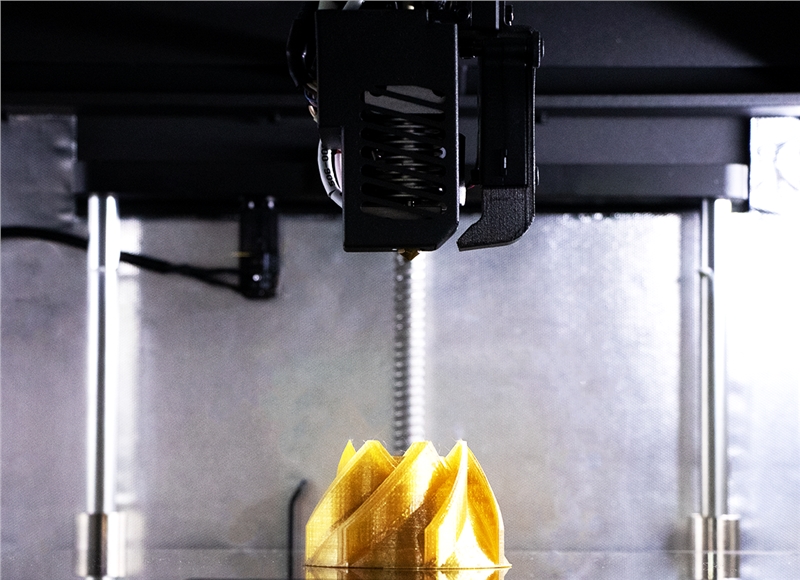

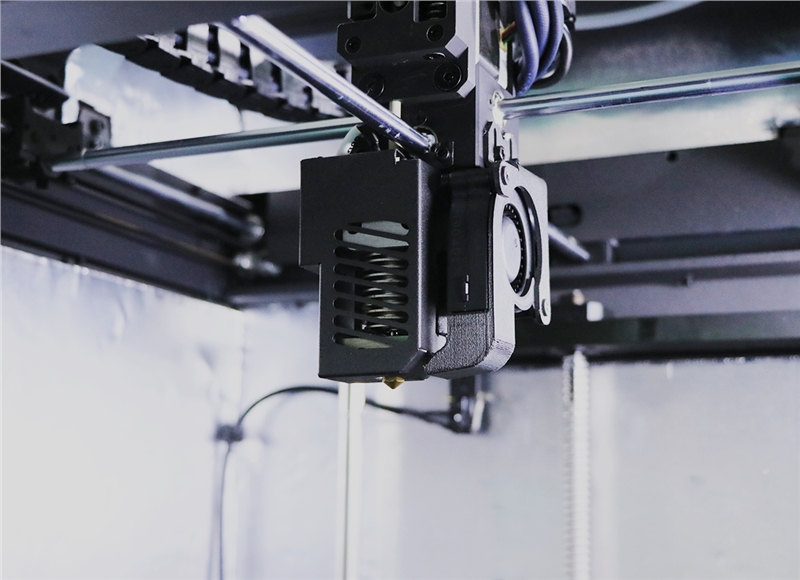

Funmat HT is a high temperature printing 3D printer that can 3D print high performance materials such as PEEK, ULTEM, PPSU, etc. It can also 3D print a wide range of engineering plastics such as PA, PC, ABS, etc. The accuracy of the finished 3D print can reach 50 microns. Funmat HT has an advanced design with 450 °C high-temperature extruder with an all-metal hot end, 160°C heated build plate, 90°C constant temperature chamber and print sizes up to 260x260x260mm.
Key Features：
．Advanced High-Temperature Design
3D Printing chamber up to 90℃, build plate up to 150℃ and the extruder up to 450℃
．Intelligent Design
Automatic levelling correction, out of filaments alert function
．Compatible with a Wide Range of 3D Printing Filaments
3D printing of PEEK, PEKK and a wide range of high performance 3D printing filaments

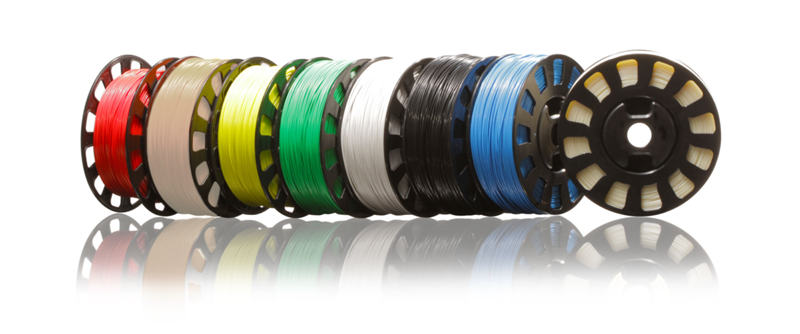

3D Printing Filaments Data System:
The Funmat series of industrial grade 3D printers are compatible with any filaments on the market, allowing customers to choose their own 3D printing filaments, while the system is pre-configured within the 3D printer for different 3D printing filaments configurations to produce higher quality 3D printed products.
With Intamsys Funmat HT 3D printers, a wide range of 3D printing filaments can be used, you can choose the right one for your product needs. Contact us to know more about the Intamsys 3D printer series !
| Model |
FUNMAT HT |
| Printing Technology |
Fused Filament Fabrication (FFF) |
| Machine Dimensions |
543×501×663mm（21.4×19.7×26.1in） |
| Build Volume |
260×260×260mm（10.2×10.2×10.2in） |
| Build Plateform |
PI Sheet Heating + Ceramic Glass |
| Leveling |
Automatic Leveling |
| Layer Thickness |
0.05-0.3mm |
| Travel Speed |
Max. 300mm/s |
| Extruder Temperature |
Max. 450℃/842℉ |
| Platform Temperature |
Max. 160℃/320℉ |
| Chamber Temperature |
Max. 90℃/194℉ |
| Supported File Type |
STL/OBJ |
| Filament Diameter |
1.75mm |
| Positioning Accuracy |
XY: 12.5μm Z: 1.25μm |
| Motor Drive |
High Performance Indepent Drivers |
| Safety Certification |
FCC/SGS/CE |
| Supported Materials |
PEEK/PEEK-CF/ PEEK-GF/PEKK/PC/PC Alloys/PA/PA-CF/ASA/ABS/HIPS/TPU/
PETG/PLA/Carbon Fiber-Filled/Glass Fiber-Filled/ESD-Safe, etc. |
