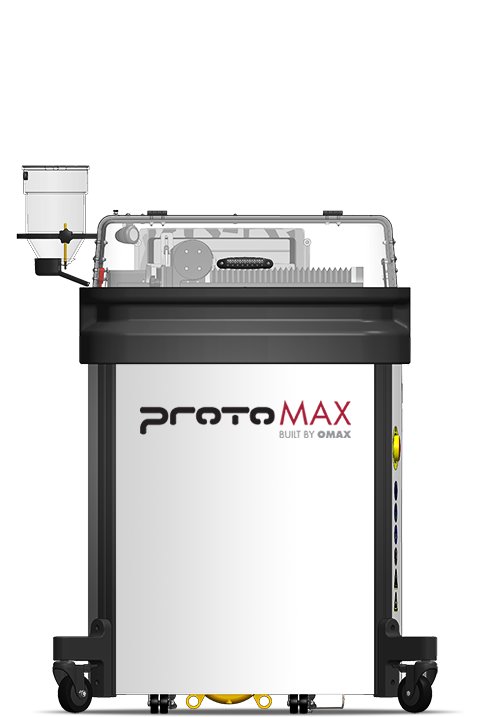

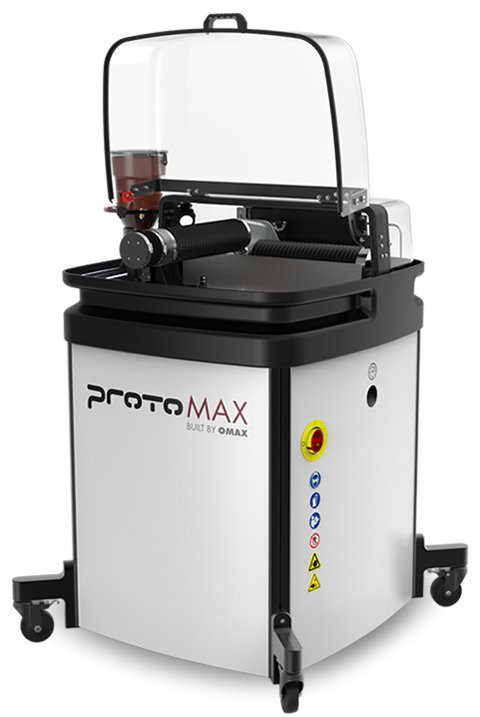

Omax ProtoMAX Waterjet Cutting Machine
ProtoMAX, a revolutionary two-in-one waterjet cutter, continues the technical benefits of the OMAX® waterjet for fast and precise cutting. Developed by the best engineers in the US waterjet industry, it can cut most of materials. The ProtoMAX is the ideal solution for prototyping or small-scale production and is the world's first compact waterjet all-in-one machine.

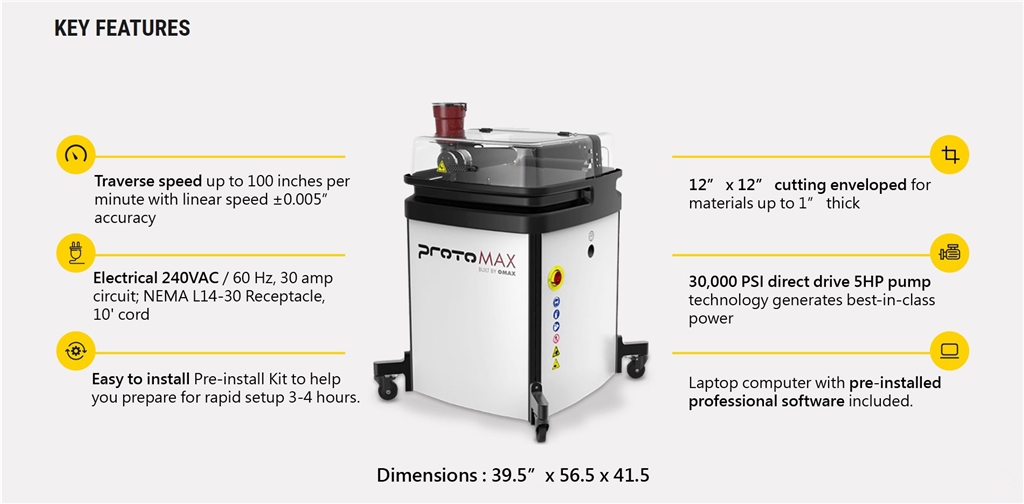

Key Features
For Its Size, Maximum Performance
• 5 HP pump generating 30,000 PSI best in class cutting power
• Up to 1" cutting thickness over a variety of materials
• The proven direct drive pump technology is efficient and reliable
Simple Setup And Use
• Software designed for abrasive waterjet cutting. Easy to set up and use - the industry gold standard
• Small footprint, perfect for tight spaces, fits through standard doorway (some modifications may be required)
• Pre-install kit to help you prepare for quick setup
• System and all required components needed to start cutting arrive in one package
• Comes with extra tools and spares to minimise downtime
• Supplied with a laptop computer pre-configured with ProtoMAX control software
• 3-4 hours installation time after unpacking
• Manual Z-axis (cutting head)
• Mobile unit: Pump and system are mounted on castors for easy relocation
Security and Reliability for Operation
• Quiet/clean underwater cutting (approx. 76 db)
• Automatic pump shutdown during cutting when lid is raised
• Precision X and Y drive components in protective sealed bellows
• Ultra-flexible stainless steel hose protects HP pipework
• Industrial light projected onto cutting bed
• Equipped with high pressure transducer and safety valve to optimise cutting speed and safety

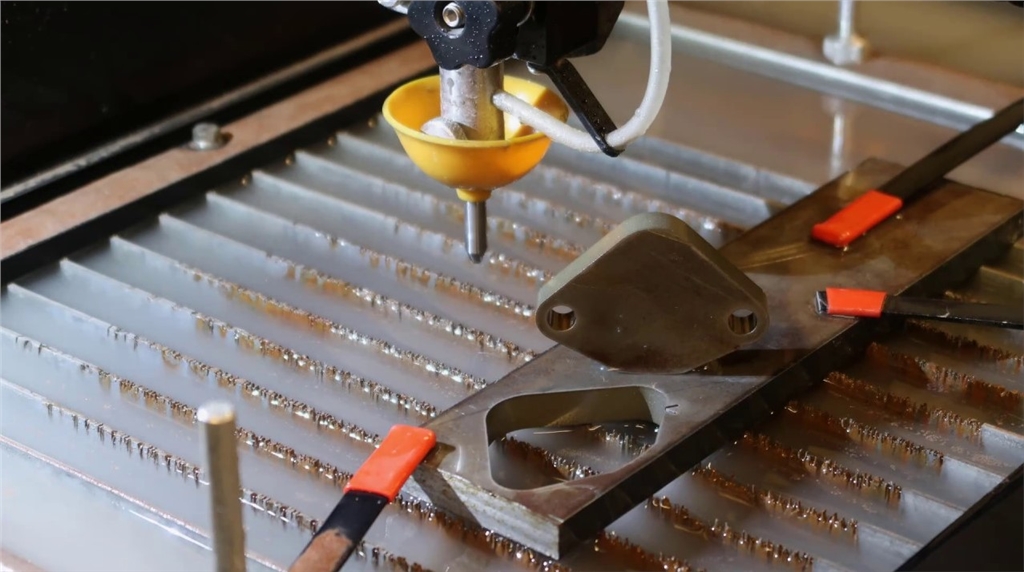

• Material retaining clamps to secure material
Low Operating Cost
• Pump stops during non-cutting traverses to save power
• Garnet consumption is minimised with optimum pressure and cutting models
• System configured with variable frequency drive for high performance motor control, reducing energy consumption and maintenance

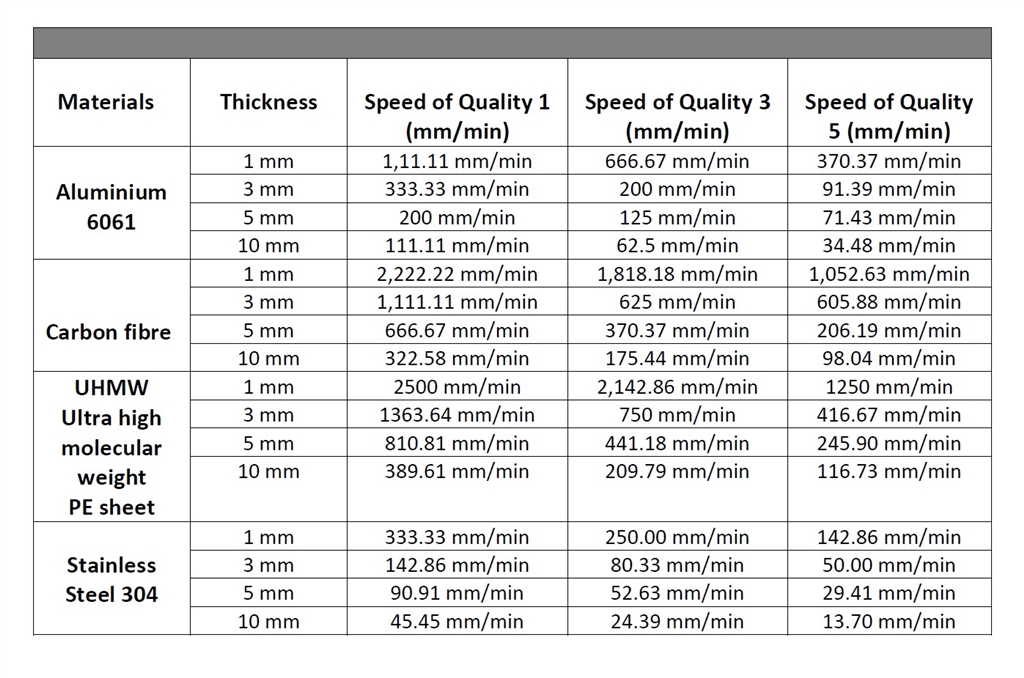

Linear Cutting Data from ProtoMAX
Description: Quality 1, fastest cut; Quality 5, best cut; Generally recommended Quality 3. The actual cutting speed varies according to the complexity of the drawing. The actual cutting speed varies depending on the complexity of the drawing.
Package Includes:
1 ProtoMAX Abrasive Waterjet Cutting Table
1 ProtoMAX 30,000psi 5hp Direct Drive Pump
1 Nozzle Assembly
1 Garnet Abrasive, 55lb Bucket
1 Set of Drain Water Tank
2 Filter Bag, FELT
1 Submersible Pump
1 Water Sprays Kit
20 Pcs of Slat, Catcher Tank
3 Mixing Tube
3 Orifice Assy, Sapphire, size 0.008 inch
1 Splash Guard for nozzle
1 Water Filter 0.5 Micron CBC-5
3 Last Chance Filter
2 Bags of Abrasive 80Mesh (25kgs/ bag)
