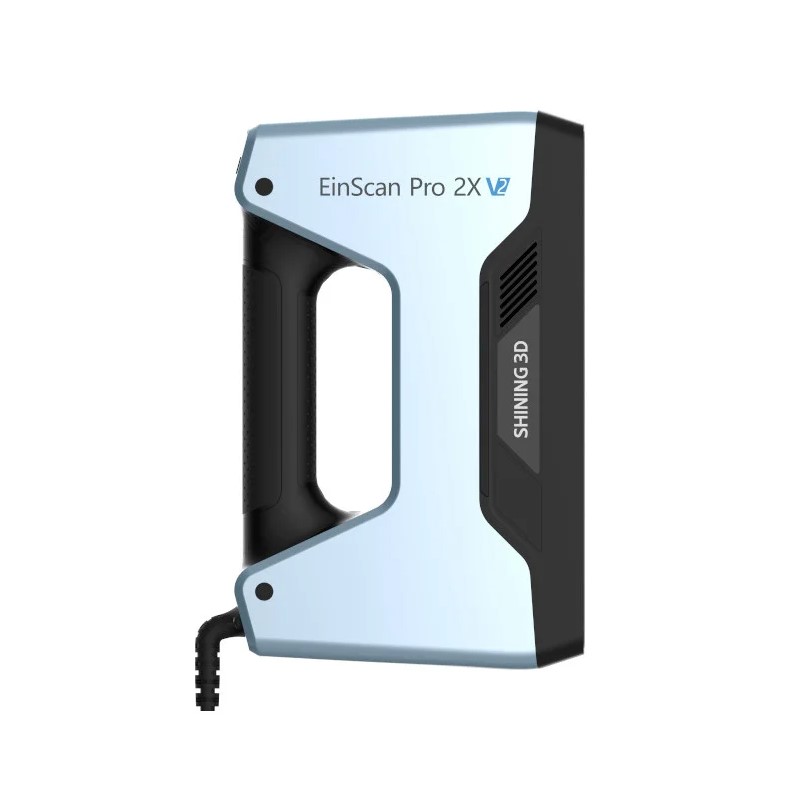

SHINING 3D EinScan Pro 2X V2 Scanner & Industrial Pack Bundle

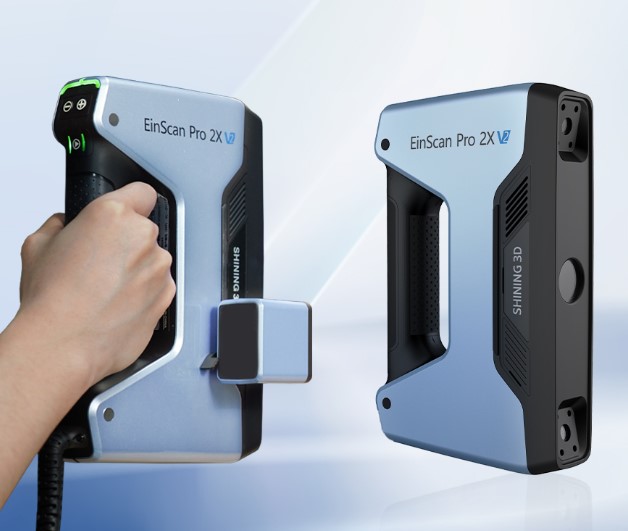

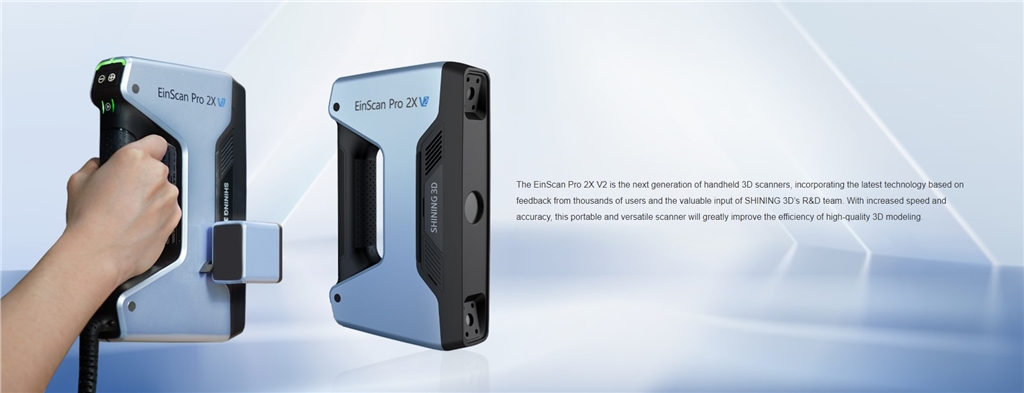

SHINING EinScan Pro 2X V2 Multifunctional Handheld 3D Scanner is a truly portable and versatile handheld 3D scanner for high-quality results. It is the next generation of handheld scanners, an upgraded version of Pro 2X 2020, incorporating the lastest technology based on feedback from thousands of users and the valuable input of SHining 3D's R&D team. With increased speed and accuracy, this portable and versatile scanner will greatly improve the efficiency of flawless 3D modeling.
• The best choice for scanning small to medium sized objects
• Richer data detail
• Wider range of materials to scan
• Faster, more accurate and smoother scanning
• Ideal for high quality 3D modelling
Product Features
Versatile Scan, Fast and Accurate
The new generation of visual acquisition components, data acquisition frame rate up to 30 fps, the maximum scanning area of 250 x 200 mm; the use of USB 3.0 camera interface, to achieve a faster, more stable data acquisition and transmission. 3D point cloud data to set the minimum distance between points down to 0.2mm, high resolution and delicate restoration of the solid stereo shape.
In handheld mode, the scanning accuracy is up to 0.045 mm, and the volume accuracy is up to 0.3 mm/m with the use of logo point splicing and positioning!
?Two Modes for More Fun
Two handheld modes allow you to focus on accuracy or efficiency depending on the scanning task, with feature stitching, marker stitching and texture stitching (with color pack) to suit a wide range of 3D modelling needs! (See product specification for details).
Hardware upgrades and software optimisations improve the unit's adaptability to the surface material of the scanned object and reduce the need for surface material of the scanned object in handheld fast mode.
User-friendly Design, Scan Diversity

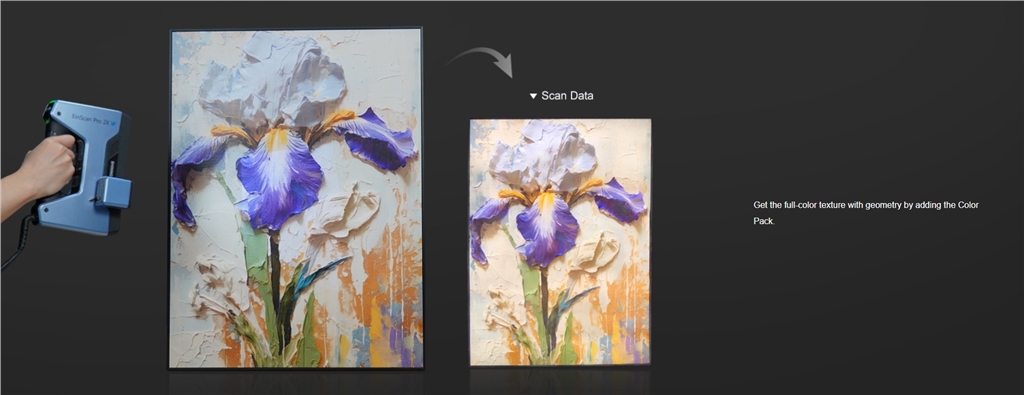

Color Pack: Enables the EinScan Pro 2X V2 to capture full-color texture along with geometry.
With the optional color pack , it can quickly capture vivid colour information on the surface of the object, truly restoring the visual appearance of the object. At the same time, the rich colours can also be used as a stitching method to support data stitching.

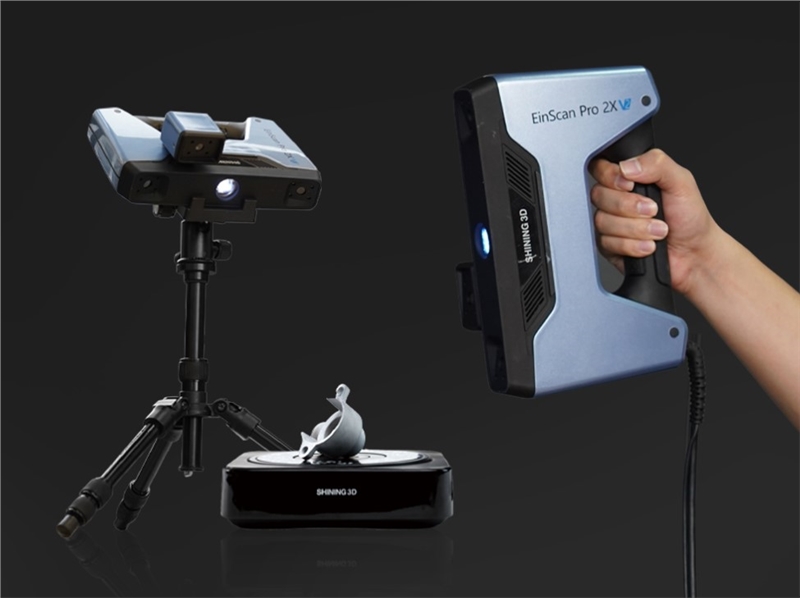

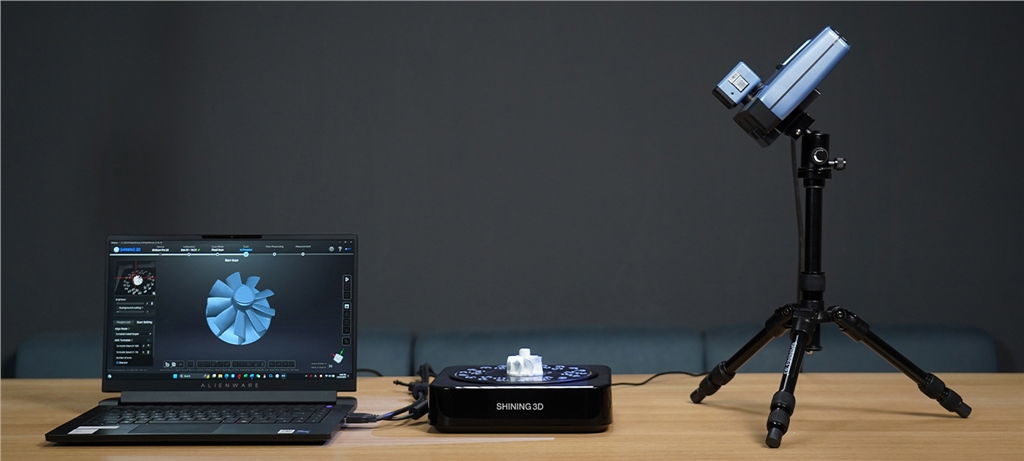

Industrial Pack: Enables the EinScan Pro 2X V2 to perform static automatic scans on a tripod and turntable for improved accuracy.
**When used in conjunction with the color pack and industrial pack, they provides a wider range of results and scanning applications!
Texture Mapper Lite: Download the free software Texture Mapper Lite to combine scanned data and photogrammetry using digital camera photos, and create a photorealistic texture 3D model.

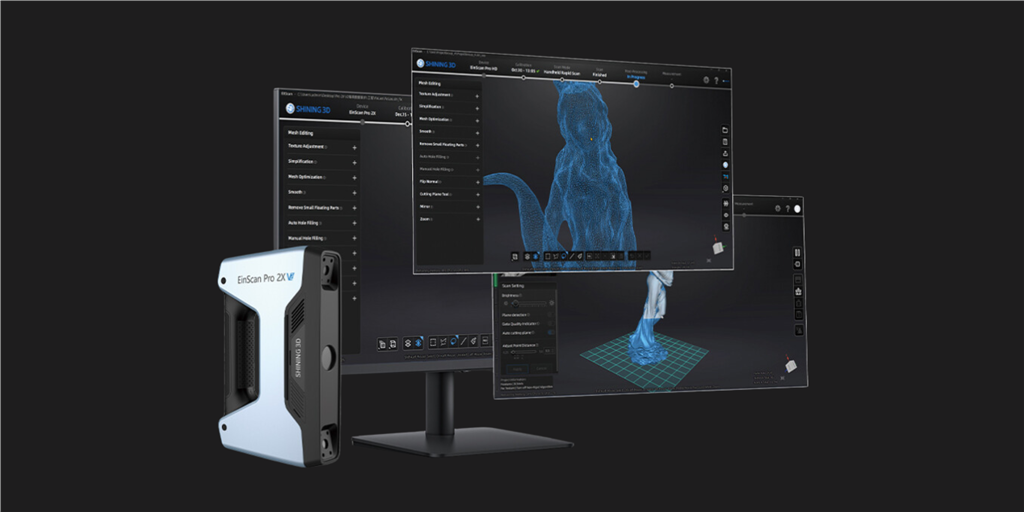

EXScan Pro： Powerful and Intuitive Software
A new user interface and workflow with new operating mode options gives users a faster scanning experience during operation and improved scanning efficiency by setting accuracy options later in the data processing process.

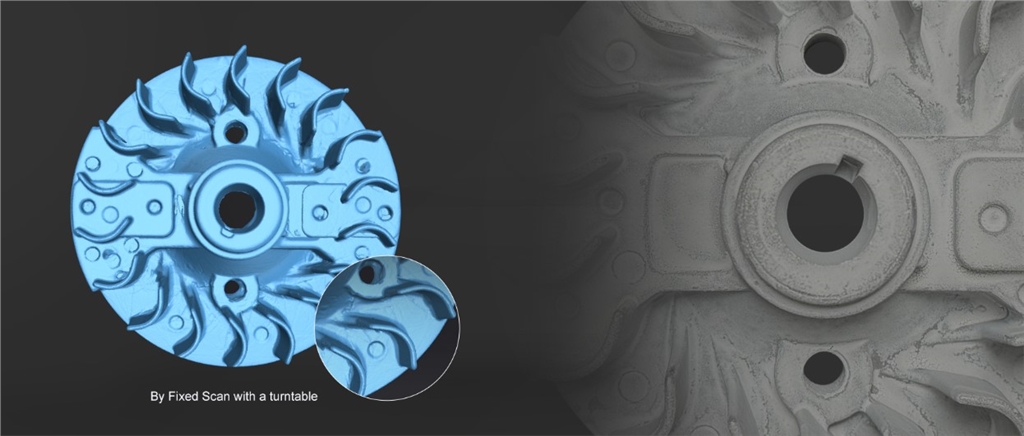

Fixed Scanning
• One-click Scan
• Background Cutting
Handheld Scannig
• Auto Cutting Plane
• Flexible Point Distance
• Scan Rewind
User-Friendly Post-Processing
• Powerful and Easy-to-use Mesh Processing Tools
• Quick Alignment
• Marker/ Point Cloud / Mesh measurement
Overall
• Texture Mapper Lite
• Free Shining3D digital cloud space
• Supports 3Dconnexion SpaceMouse

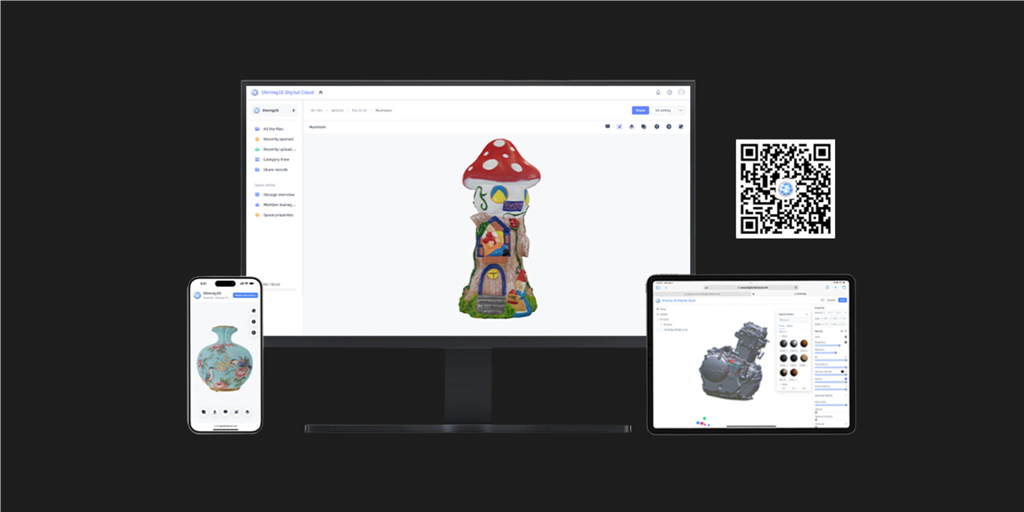

SHINING 3D Digital Cloud is a comprehensive cloud service platform developed by SHINING 3D.
• Securely store 3D data in the cloud for easy access.
• Effortlessly share 3D data with collaborators.
• View 3D models directly within the platform for quick assessment.
• Easily add and edit labels to effectively organize and manage 3D data.

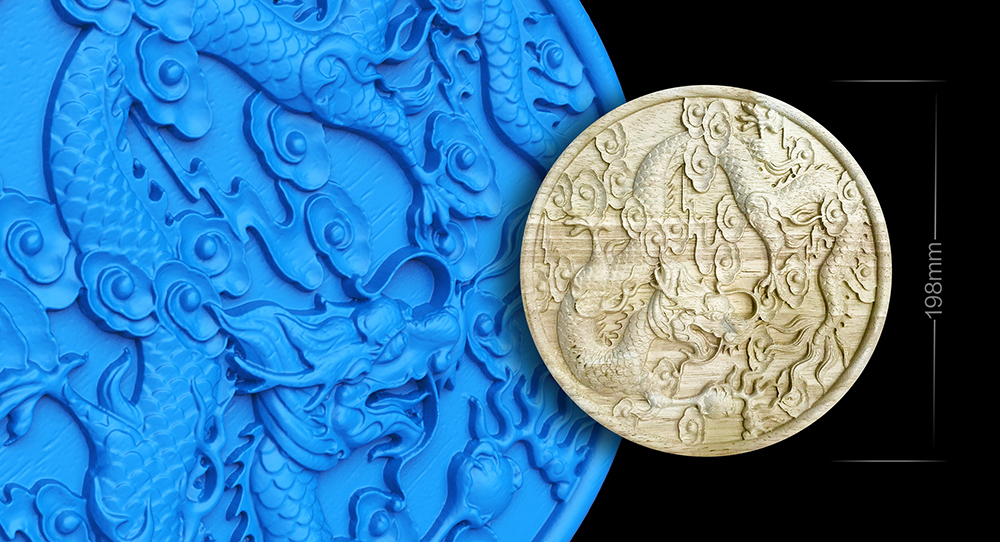

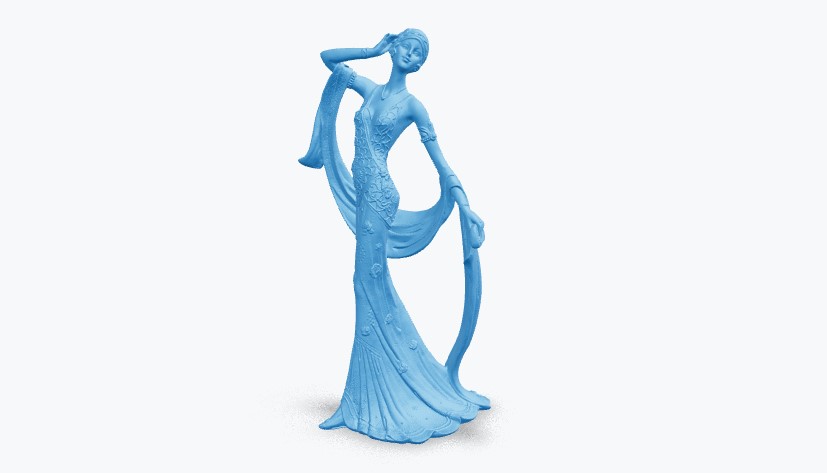

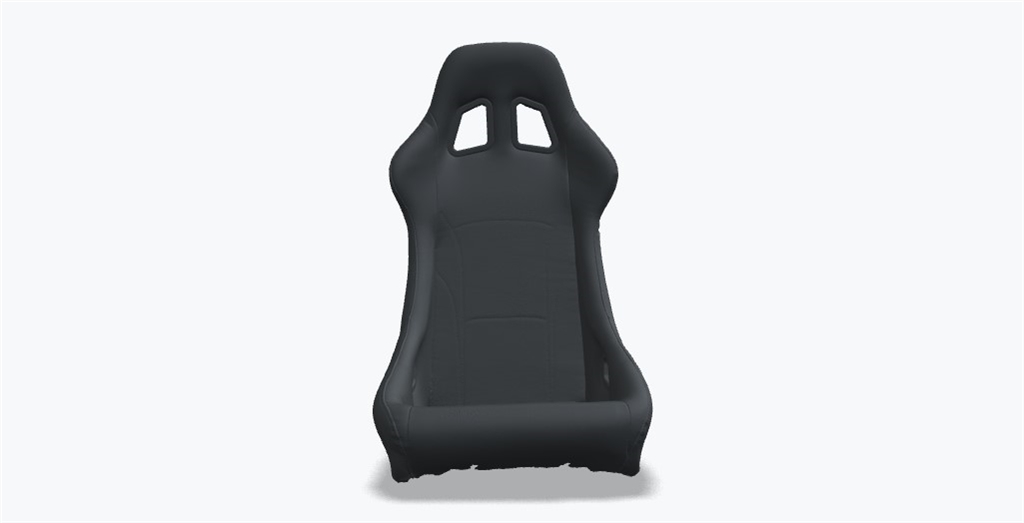

3D Scanning Samples
SHINING EinScan Pro 2X V2 is a new generation 3D scanner with higher accuracy and can also be paired with a 3D printer to create customised products, effectively saving time and cost,. Contact us for more informations!
| Scan Mode |
Handheld HD Scan |
Handheld Rapid Scan |
Fixed Scan with Turntable |
Fixed Scan without Turntable |
| Scan Accuracy |
up to 0.045mm |
up to 0.1mm |
0.04mm (single shot accuracy) |
0.04mm (single shot accuracy) |
| Volumetric |
0.3 mm / m
(Markers Alignment) |
0.3 mm / m
(Markers Alignment) |
- |
- |
| Scan Speed |
10 fps
3,000,000 points/s |
30 fps
1,500,000 points/s |
Single Scan< 1s |
Single Scan< 1s |
| Point Distance |
0.2 mm - 2mm |
0.25 mm - 2mm |
0.16 mm |
0.16 mm |
| Scan Range |
150 x 120mm – 250 x 200mm |
| Depth of Field |
300-500 mm |
| Working Distance |
400mm |
| Light Source |
LED |
| Align Mode |
Marker
Texture
Feature
Hybird |
Marker
Texture
Feature
Hybird |
Turntable
Targents
Feature
Markers
Manual
Global Markers |
Markers
Feature
Manual
Global Markers |
| Texture Scan |
Yes (With add-on : Color Pack) |
| Outdoor Operation |
Set up the shelter or cover to avoid direct sunlight |
| Special Objects for Scanning |
For the transparent, highly reflective or some dark objects, please spray powder before scanning |
| Printable Data Output |
Able to export watertight 3D model directly to 3D printing |
| Output Formats |
OBJ、STL、ASC、PLY、3MF、P3 |
| Scanner Body Weight |
1.13kg (include the USB3.0 cable) |
| Supported OS |
Win7, 8, 10 (64 bit) |
| Supported Software |
ExScan Pro、Solid Edge SHINING 3D version |
| Recommended Configuration |
Graphics card: NVIDIA GTX／RTX1080 or higher version |
| Required Configuration |
Grapgics card : P1000 or NVIDIA GTX660 or higher version
CPU：I5-3470/ I7-3770
Memory : 16G
Interface：USB 3.0 |
| Industrial Pack Bundle Iccluded |
Handheld EinScan Pro 2X V2 3D Scanner
Tripod and Truntable |
