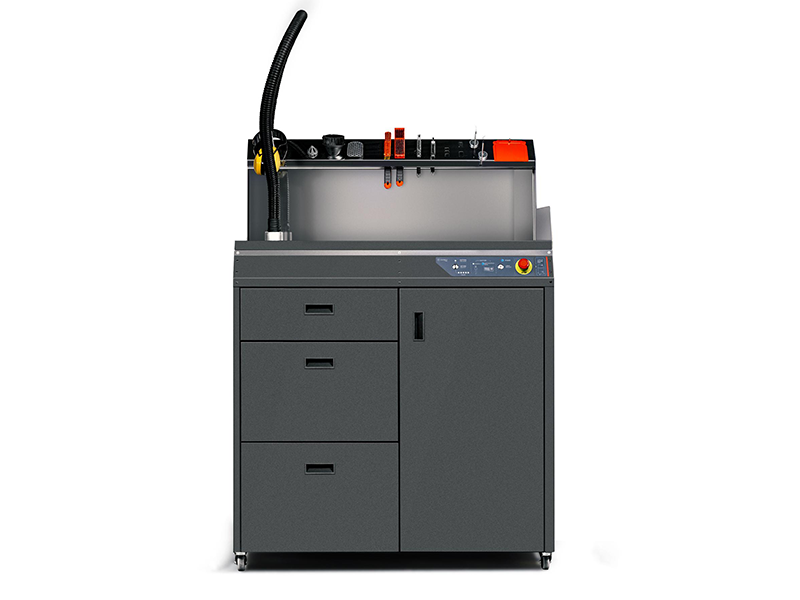

Sinterit Powder Handling Station (PHS)
New quality of powder handling
All processes in one ergonomic designed place. Supporting device designed to make post-processing and powder recovery as clean as possible.
Key features:
．Post-processing and powder recovery: all processes in one place!
．Ergonomic design
．The required tools are readily available
．Easy to depowder in 5 simple steps
．Powder post-processing, 5 easy step:
1. Initial post-processing

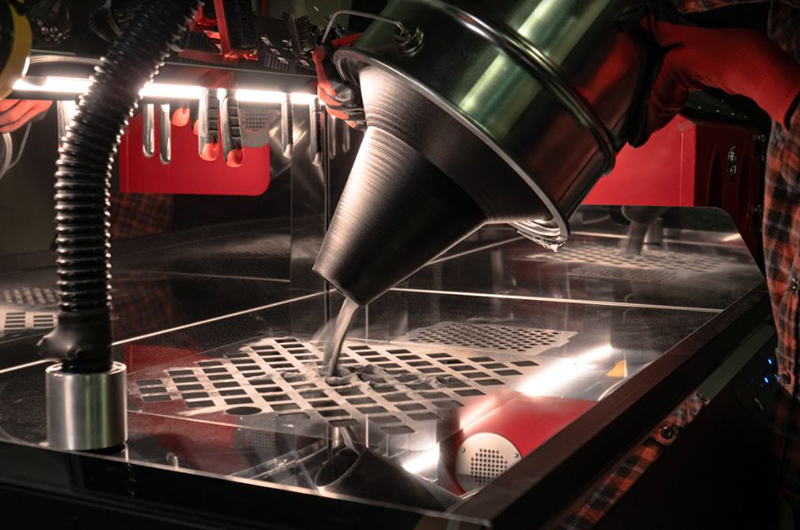

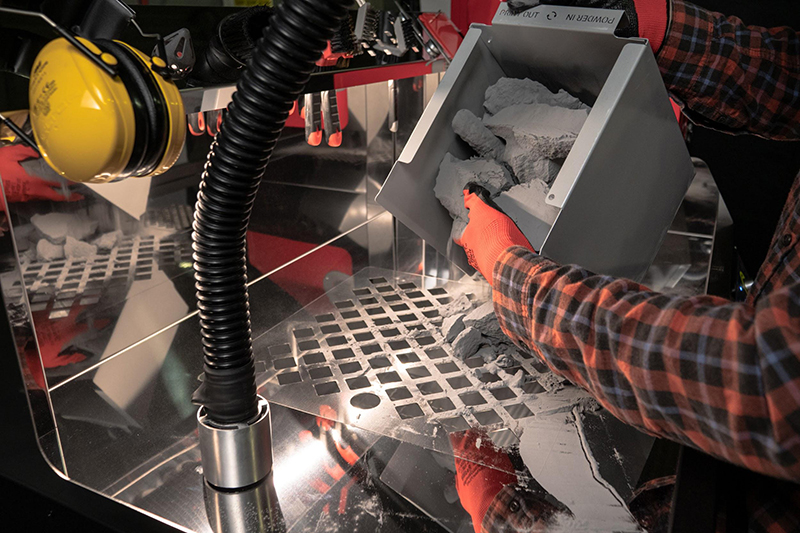

Thanks to the chamber cover with large holes located on the worktop, you can easily push the unsintered powder through, while pre-cleaning the print. Powder from the powder chamber under the worktop is transported to the sieving module.

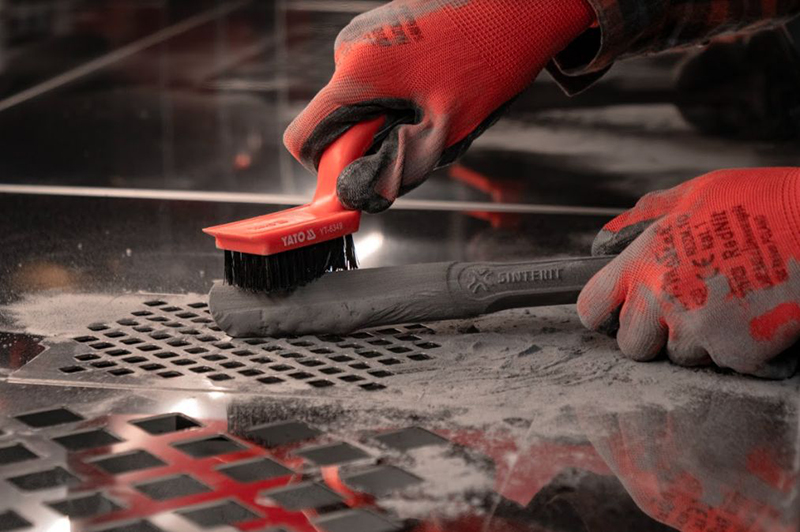

2. Precise depowdering
During precise cleaning on the top of the Fine Dust chamber (with smaller grid) on the right the powder is sucked into the powder chamber.

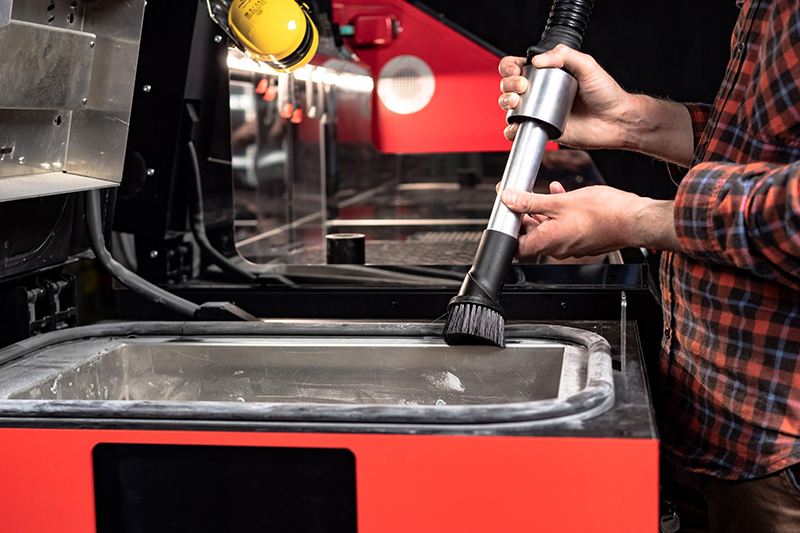

4. ?Cleaning the printer and workspace
Flexible 2m suction hose reaches easily both the Sinterit 3D Printer and the whole PHS workspace. All the powder is reusable.
5. Powder refreshing
All the recovered powder is transferred to a sieving module and then goes into a metal container. The sieving module located makes the powder ready for further process.
| Size |
700 x 1000 x1580mm |
| Weight |
150kg |
| Installation space |
1700 x 2200 x 1800mm |
| Sifting time |
25 min |
| Contents |
．Powder separator
．Powder separator
．3 drawers: storage space for depowdering tools
．Shelf designed for keeping the precision-work tools.
．Holes for dedicated suction hose nozzles.
．LED light
．Drawer for metal container |
| Powder capacity |
Maximum 8/1.8 (l/gal) |
| Power |
110/230 [V] AC, 12 VDC 6,67 A, 80W |
